Building a Graph in ggplot2

Packages that we will use:

library(ggplot2)
library(bcscr)    # for m111survey data

Here is our target graph. Let’s build it, step by step.

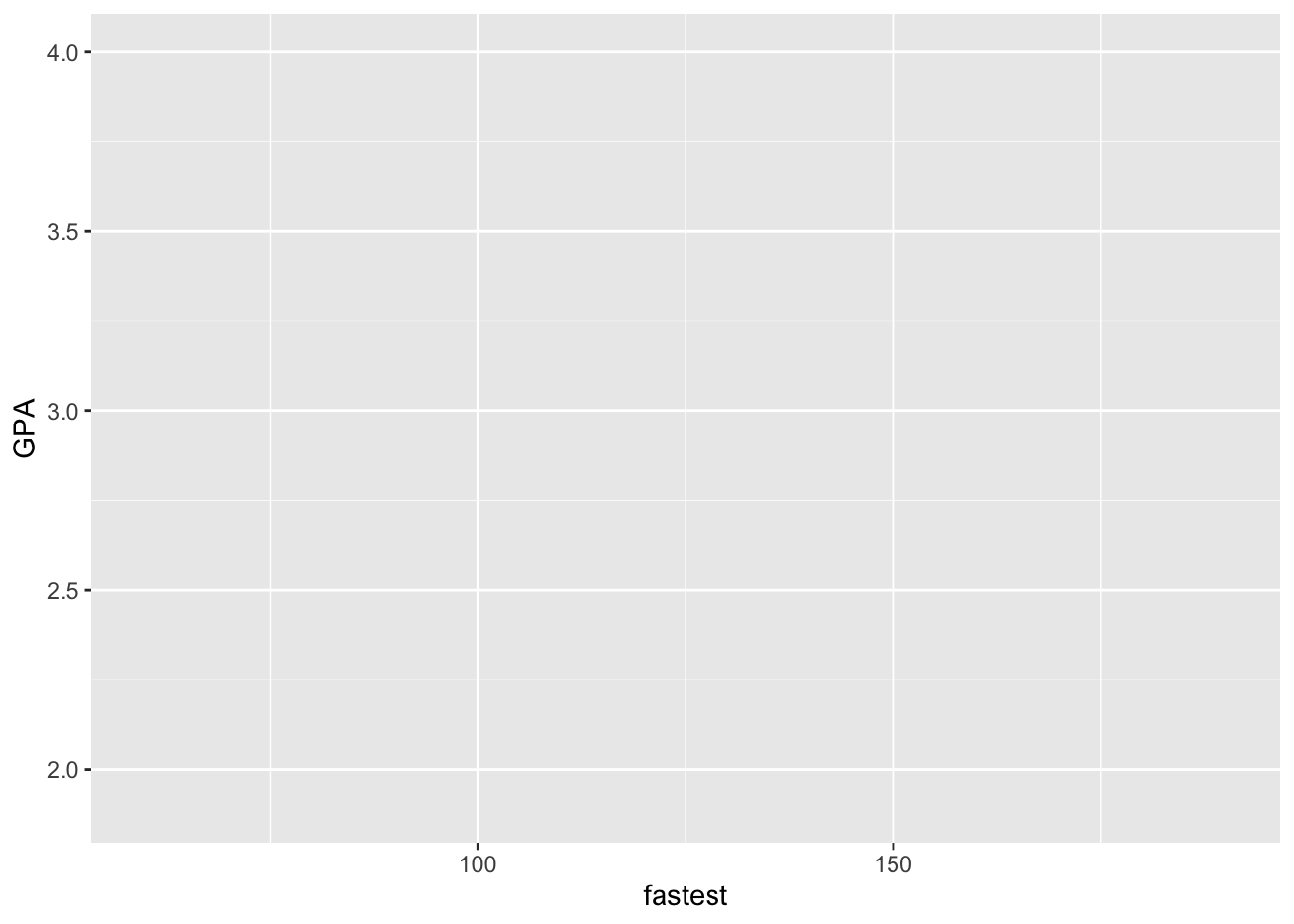

First, set up the frame.

ggplot(m111survey, aes(x = fastest, y = GPA))

Next, the glyphs.

ggplot(m111survey, aes(x = fastest, y = GPA)) +
  geom_point()

You can include ane or more aesthetic mappings for the glyph.

ggplot(m111survey, aes(x = fastest, y = GPA)) +
  geom_point(aes(color = sex))

Now think about the labels.

ggplot(m111survey, aes(x = fastest, y = GPA)) +
  geom_point(aes(color = sex)) +
  labs(
    x = "fastest speed ever driven (mph)",
    y = "grade-point average",
    title = "Not much overall relationship between speed and GPA!",
    subtitle = "(the fellers seem to drive faster and have lower GPAs)"
  )

Label for the x-axis:

x = "fastest speed ever driven (mph)"

Label for the y-axis:

 y = "grade-point average"

Title and subtitle:

title = "Not much overall relationship between speed and GPA!",
subtitle = "(the fellers seem to drive faster and have lower GPAs)"

And there you have it!
